Reliable Corrosion Testing Solution – Up to 1600L Capacity
Redmark Industry supplies advanced salt spray chambers designed for accelerated corrosion testing in accordance with ASTM B117, ISO 9227, and other international standards. Ideal for quality control, product development, and compliance testing across multiple industries.
A salt spray chamber is used for accelerated corrosion testing to evaluate the durability of coatings and materials. It helps manufacturers ensure their products meet corrosion resistance standards before going to market.
The S-020 model offers continuous and periodic salt fog tests (NSS, ASS, CASS), suitable for manufacturers and labs that require dependable and standardized corrosion evaluations.
| Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
| Internal dimensions (mm) | 590*470*400 | 1000*640*500 | 1100*750*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
| Overall dimensions (mm) | 1460*760*1140 | 1850*960*1350 | 1950*1030*1350 | 2000×1300×1600 | 2300×1300×1700 | 2700×1300×1900 |
| Interior Volume (L) | 110 | 320 | 410 | 780 | 1030 | 1600 |
| Temperature Range | Ambient ～ +60 ℃ | |||||
| Temperature Fluctuation | ± 0.5 ℃ | |||||
| Temperature Deviation | ± 2.0 ℃ | |||||
| Humidity Range | 95% ~ 98% RH | |||||
| Salt Fog Deposition | 1～2ml / 80cm2 · h | |||||
| Spray Type | Continuous / Periodic | |||||
| Salt Fog Collected | Fog collector and fog measure cylinder | |||||
| Air Preheating | Saturated air barrel | |||||
| Spraying System | Atomizer tower and Spray nozzles | |||||
| Controller | PID controller | |||||
| Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | |||||
| Material | Glass fiber reinforced plastics | |||||
| Standard Configuration | 6 round bars and 5 V-shaped grooves | |||||
Need help choosing the right size? Contact our technical team for a recommendation.
High Durability: FRP material resists long-term corrosion and heat
Stable Test Conditions: Dual-control system for temperature and fog delivery
Eco-Friendly Design: Bottom clay board insulation for energy efficiency
User Convenience: Easy-access test space, sample holders included, and fast drainage system
Redmark Industry supports quality assurance teams across industries:
Automotive: OEM parts, fasteners, chassis, trim components
Coatings & Paint: Performance testing for painted surfaces
Electronics: Enclosures, terminals, connectors
Metal & Surface Finishing: Galvanized, powder-coated, or plated parts
R&D Labs: Universities and private test labs
Technical guidance from experienced engineers
Custom configuration available upon request
Local support across Malaysia, Singapore, Indonesia, and beyond
Calibration and maintenance services available
Responsive team with fast quotation and delivery
Ready to improve your corrosion resistance testing?
Let us help you choose the right salt spray chamber. Our S-020 is ideal for high-volume, industrial-scale applications.
Customer Testimonial:

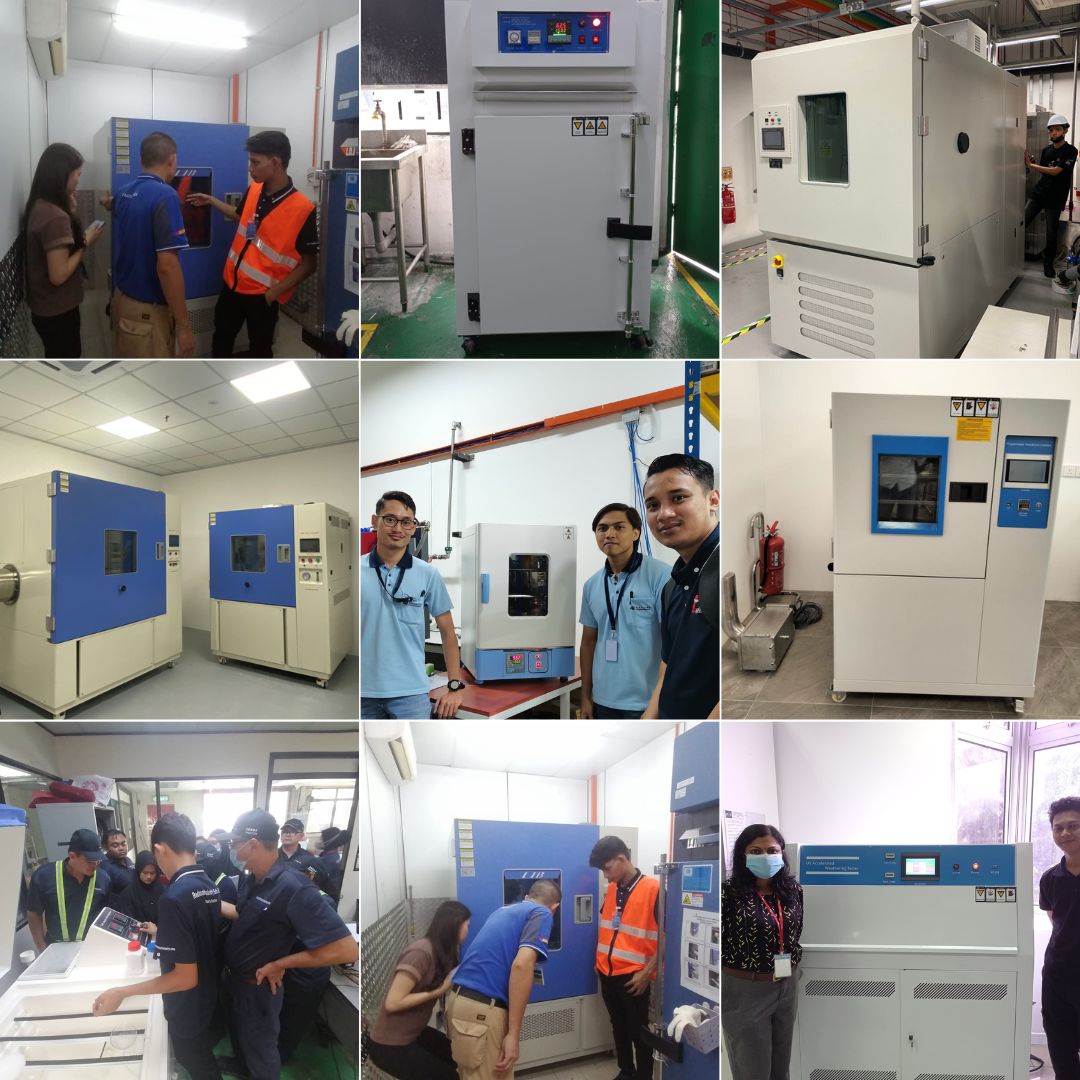

LIB chambers are used by multinational manufacturers, research institutions, and quality control labs worldwide. Our satisfied customers attest to the reliability, precision, and durability of our equipment.
