It only takes one second to acquire.

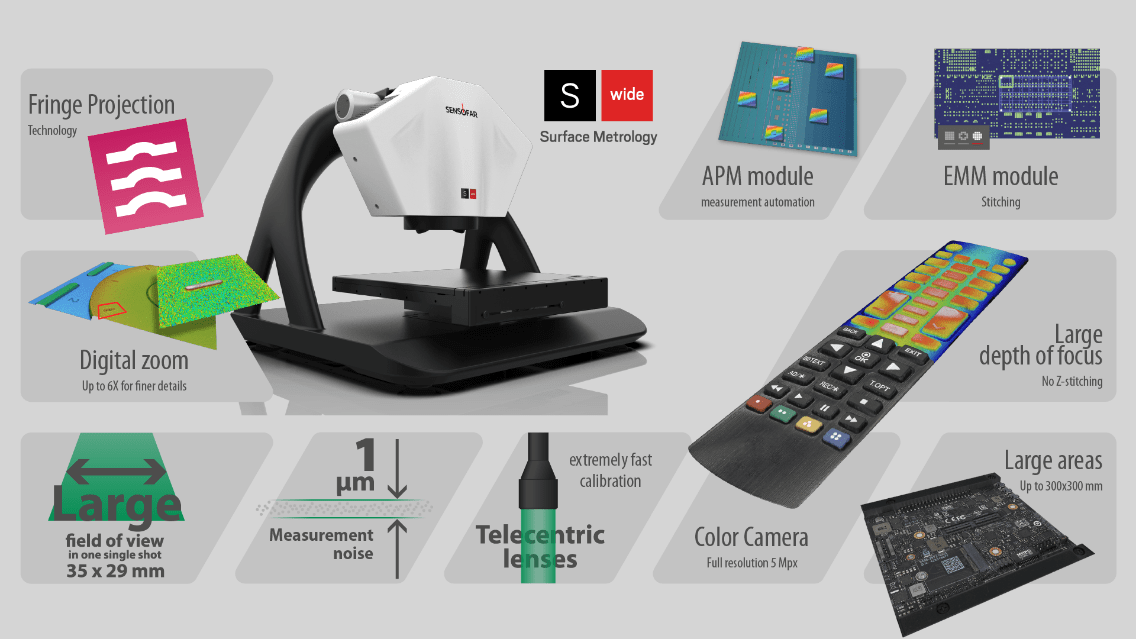

With S wide’s Fringe Projection technology and a suite of different acquisition modes, the measurements can be optimized to achieve the highest throughput.
This 3D scanner features a 5 MPx color camera that, along with its digital zoom capabilities, captures a variety of details on your inspected parts.
Measure numerous arrays of samples and large areas thanks to the 300 x 300 mm stage configuration.
The proprietary Fringe Projection algorithms used by the S wide result in remarkable micron-level accuracy, providing unmatched submicron height repeatability across expansive measurement surfaces.
The S wide is packed with a suite of analysis tools to extract every piece of information from the measured data: roughness and flatness parameters, critical dimensions, GD&T, and CAD comparisons.
Advanced stitching capabilities enable the S wide to acquire measurements across expansive areas.
The acquisition software provides a complete automatization of measurement procedures. It features tools for effortless programming of measurements at different positions.
The S wide offers four distinct configurations that fit various scenarios, either a standard setup for R&D or an advanced solution for inline process control.
Our structured light system provides a large field of view (FOV) and depth of focus, enabling it to capture an impressive region of 35 x 29 x 40 mm.
The S wide brings in the experience of a new level of visualization and precision. Its 5 Mpx color camera delivers vivid and detailed /data. /
This 3D scanner is equipped with green and blue light sources. Having multiple light sources provides the flexibility to choose the most suitable option regardless of the color or reflectivity of the sample. /
The S wide delivers quick measurements to minimize cycle time. It efficiently covers a large area without the need for Z movement. In addition, its customizable fringe projection modes further optimize measurement time for maximum efficiency. /
SensoVIEW is the ideal analysis software for a broad range of tasks. It includes a comprehensive suite of tools for preliminary examination and analysis of 3D or 2D measurements, allowing for roughness or volume calculations and gauging critical dimensions. /
Rapid Quality Control
SensoPRO is the ideal tool for quality control analysis. This advanced analysis software offers a comprehensive plugin-based solution that automatically recognizes specific features in the data and delivers accurate parameter measurements. / /
Fringe Projection
| Default | Zoom1 | |||
| MAG | 1X | 2X | 4X | 6X |
| Effective magnification2 | 11X | 22X | 44X | 66X |
| FOV (mm) | 34.8 x 29.1 | 17.4 x 14.5 | 8.7 x 7.3 | 5.8 x 4.8 |
| Spatial sampling (µm) | 14.2 | 7.1 | 3.6 | 2.4 |
| Stitching range full resolution (mm)3 | 348 x 291 | 174 x 145 | 87 x 73 | 58 x 48 |
| Stitching maximum range (mm)4 | 1380 x 1154 | 346 x 289 | 173 x 145 | 115 x 96 |
1 The zoom available is a digital zoom. 2 Magnifications with a 27-inch monitor. 3 5 Mpx and overlap of 10%. 4 SD acquisition for 1X and HD for 2X, 4X, and 6X with an overlap of 10%.

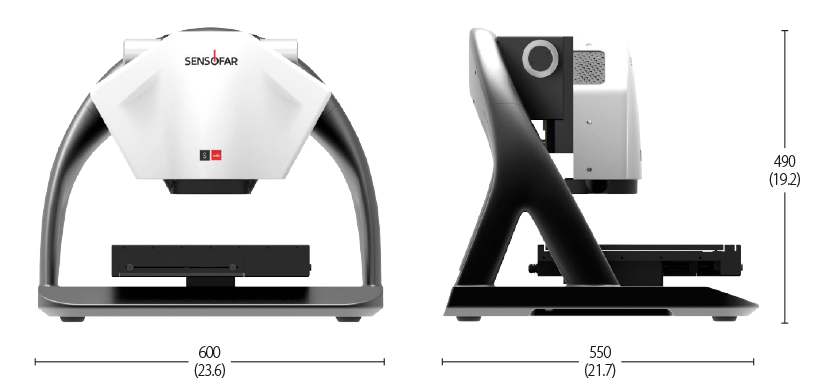

XY performance
| XY | Motorized | ||
| Manual | M | XL | |
| Travel range (mm) | 150 x 100 | 154 x 154 | 302 x 302 |
| Standard | U, σ |
| Step height | U=2.5 µm, σ= 0.05 µm |
| Area roughness (Sa) | U=1 µm, σ=0.01 µm |
| Profile roughness (Ra) | U=1 µm, σ= 0.05 µm |
| Computer | 8th generation Intel® Core™ i7 Processor Display 3840×2160 pixels resolution (4K)(27″) |
| Operating System | Microsoft Windows 10, 64-bits |
