SPEED CONTROL MOTOR
Speed Adjustable Motor 200W
Speed Adjustable Motor 200W



Speed Adjustable Motor 200W

SEM Equipment Sdn. Bhd. flag
Category: SPEED CONTROL MOTOR Available
For more information, visit our official website at sem-eq.com
Visit Official Site Contact Us
Description




Model :

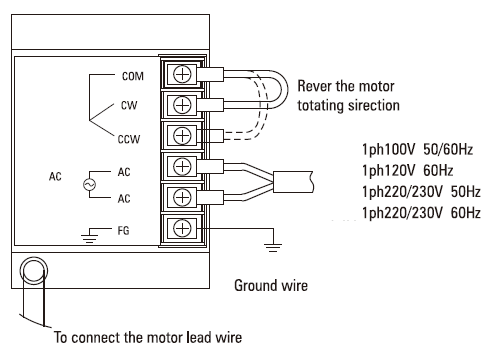

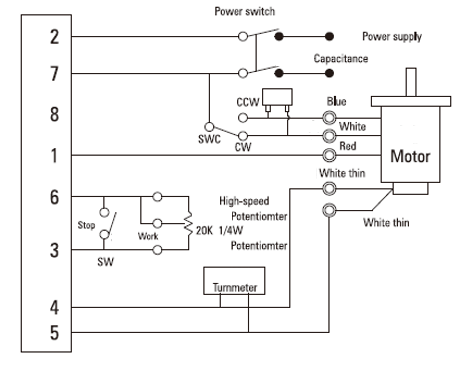

Diagram :

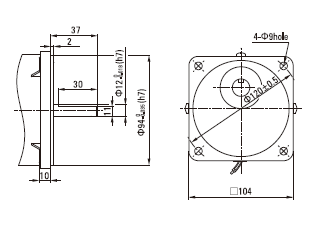

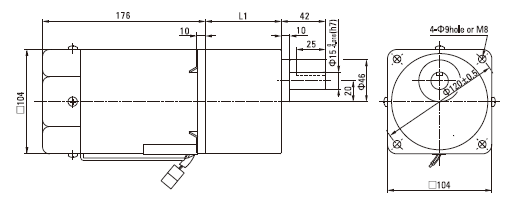

Dimensions :








Specifications :


Lead Wire Type Maximum Output
power 		 Voltage Frequency Speed Control
range		 Allowance
Torque		 Starting
torque		 Current Capacitor
Pinion Shaft Round Shaft W V Hz r/min 1200r/min
mN.m		 90r/min
mN.m		 mN.m A µF
6IK200RGU-CF 6IK200RA-CF 200 1ph 220 50 90~1350 920 500 1000 1.4 10
1ph 230
6IK200RGU-HF 6IK200RA-HF 200 1ph 220 60 90~1650 920 500 1000 1.4 10
1ph 230
