SPEED CONTROL MOTOR
Pinion Shaft Speed Adjustable Motor 60W
Pinion Shaft Speed Adjustable Motor 60W



Pinion Shaft Speed Adjustable Motor 60W

SEM Equipment Sdn. Bhd. flag
Category: SPEED CONTROL MOTOR Available
For more information, visit our official website at sem-eq.com
Visit Official Site Contact Us
Description



Model :

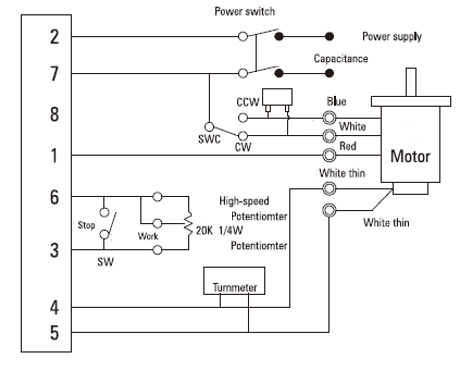

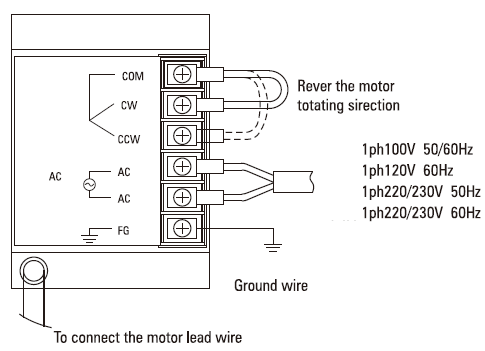

Diagram :

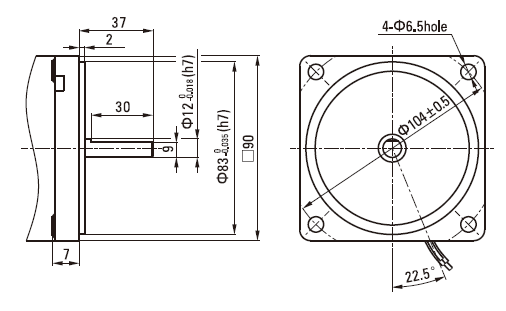

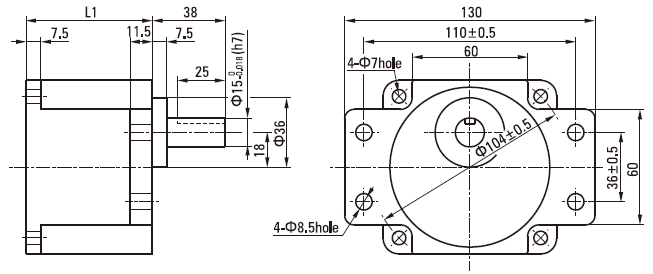

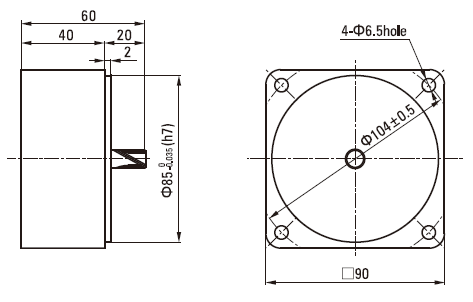

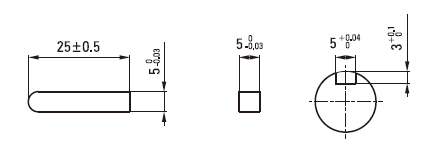

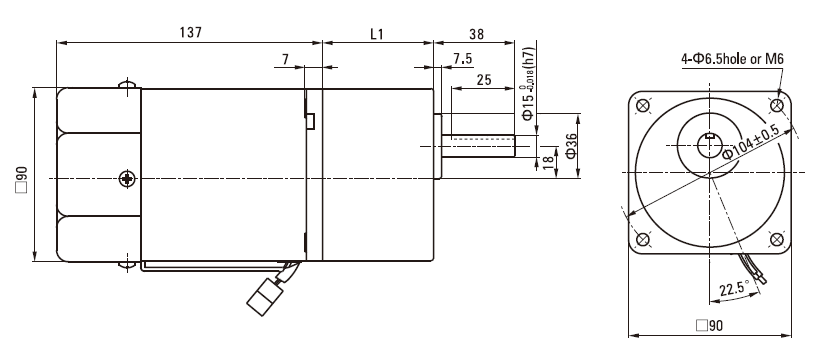

Dimensions :













Specifications :


Lead Wire Type Maximum Output
power 		 Voltage Frequency Speed Control
range		 Allowance
Torque		 Starting
torque		 Current Capacitor
Pinion Shaft W V Hz r/min 1200r/min
mN.m		 90r/min
mN.m		 mN.m A µF
5IK60RGU-AF 60 1ph 100 50 90~1350 460 140 265 1 20
60 90~1650 490 160 1.1
5IK60RGU-EF 60 1ph 110 60 90~1650 490 160 265 0.8 12
1ph 120 0.85
5IK60RGU-CF 60 1ph 220 50 90-1350 490 140 265 0.5 4
1ph 230 0.55
5IK60RGU-HF 60 1ph 220 60 90~1650 490 160 265 0.5 4
1ph 230 0.55
