SPEED CONTROL MOTOR
Speed Adjustable Motor 25W
Speed Adjustable Motor 25W



Speed Adjustable Motor 25W

SEM Equipment Sdn. Bhd. flag
Category: SPEED CONTROL MOTOR Available
For more information, visit our official website at sem-eq.com
Visit Official Site Contact Us
Description



Model :

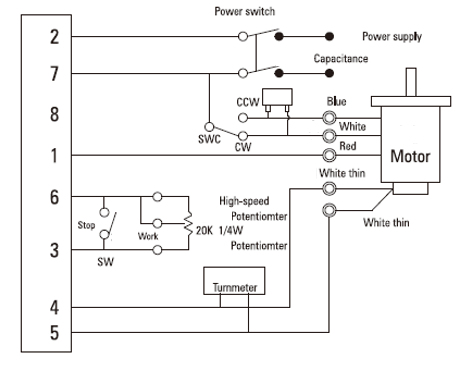

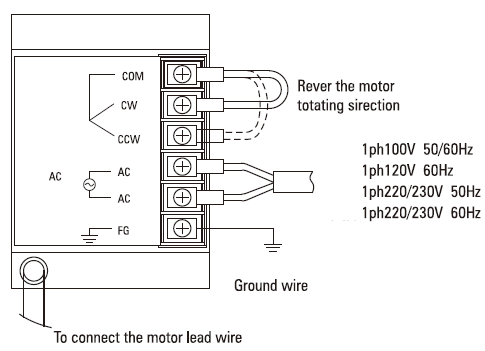

Diagram :

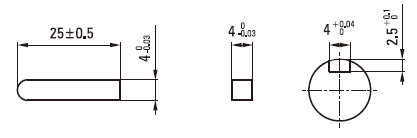

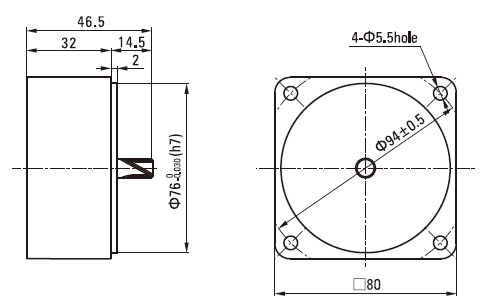

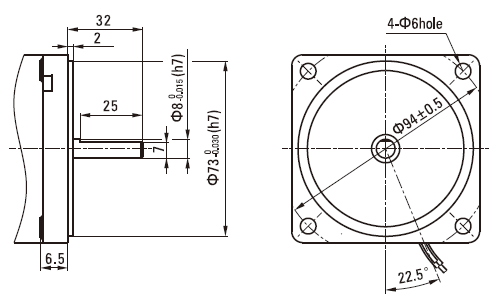

Dimensions :








Specifications :


Lead Wire Type Output
power 		 Voltage Frequency Speed Control
range		 Allowance
Torque		 Starting
torque		 Current Capacitor
Pinion Shaft  Round Shaft W V Hz r/min 1200r/min
mN.m		 90r/min
mN.m		 mN.m A µF
Model  4IK25RGN-A 4IK25RA-A 25 1ph 100 50 90~1350 190 47 88 0.5 8
60 90~1650 0.55
4 K25RGN-E 4IK25RA-E 25 1ph 110 60 90~1650 190 50 105 0.45 7
1ph 120 0.5
4IK25RGN-C 4IK25RA-C 25 1ph 220 50 90~1350 190 47 88 0.25 1.8
1ph 230 0.23
4 K25RGN-H 4 K25RA-H 25 1ph 220 60 90~1650 190 45 88 0.23 1.8
1ph 230
